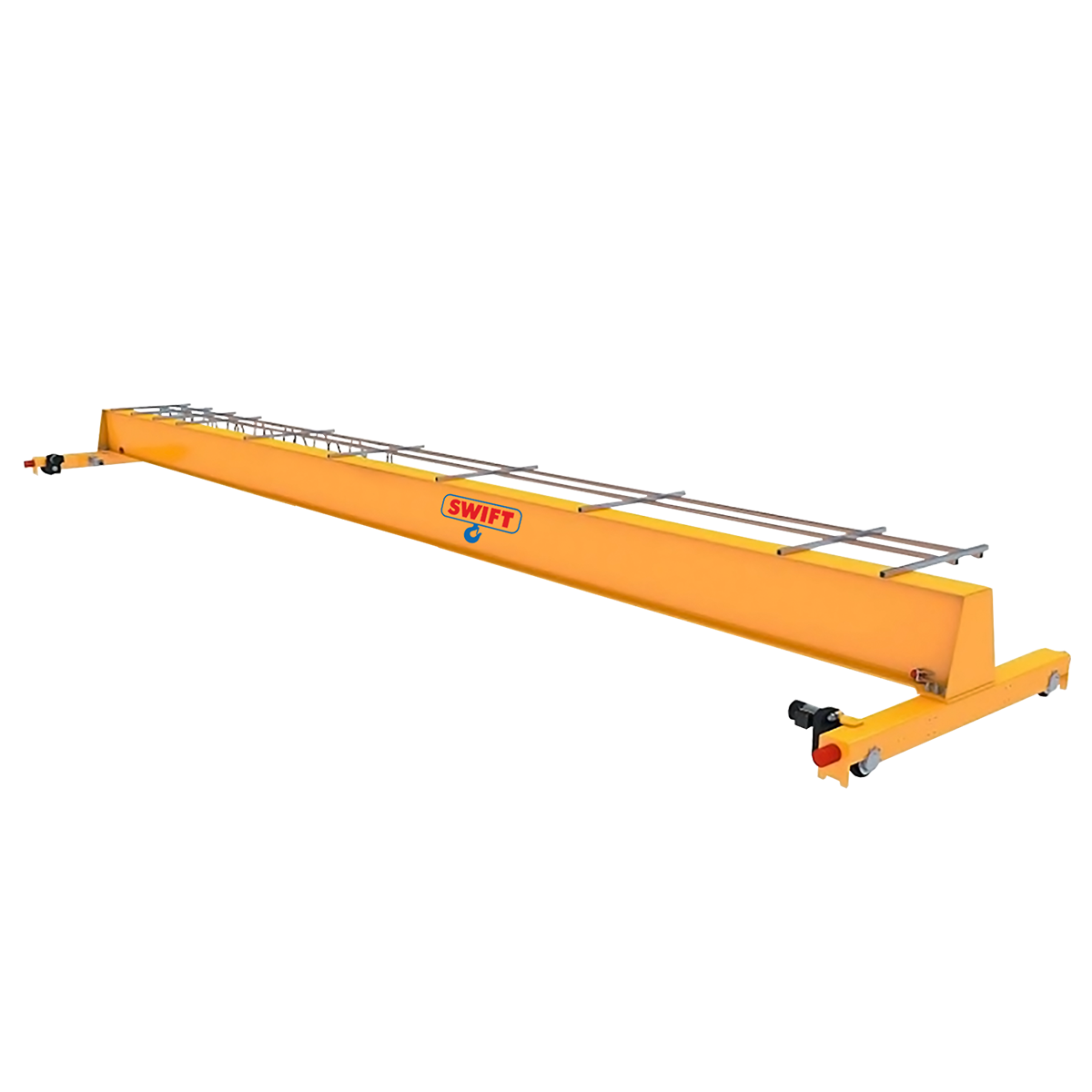

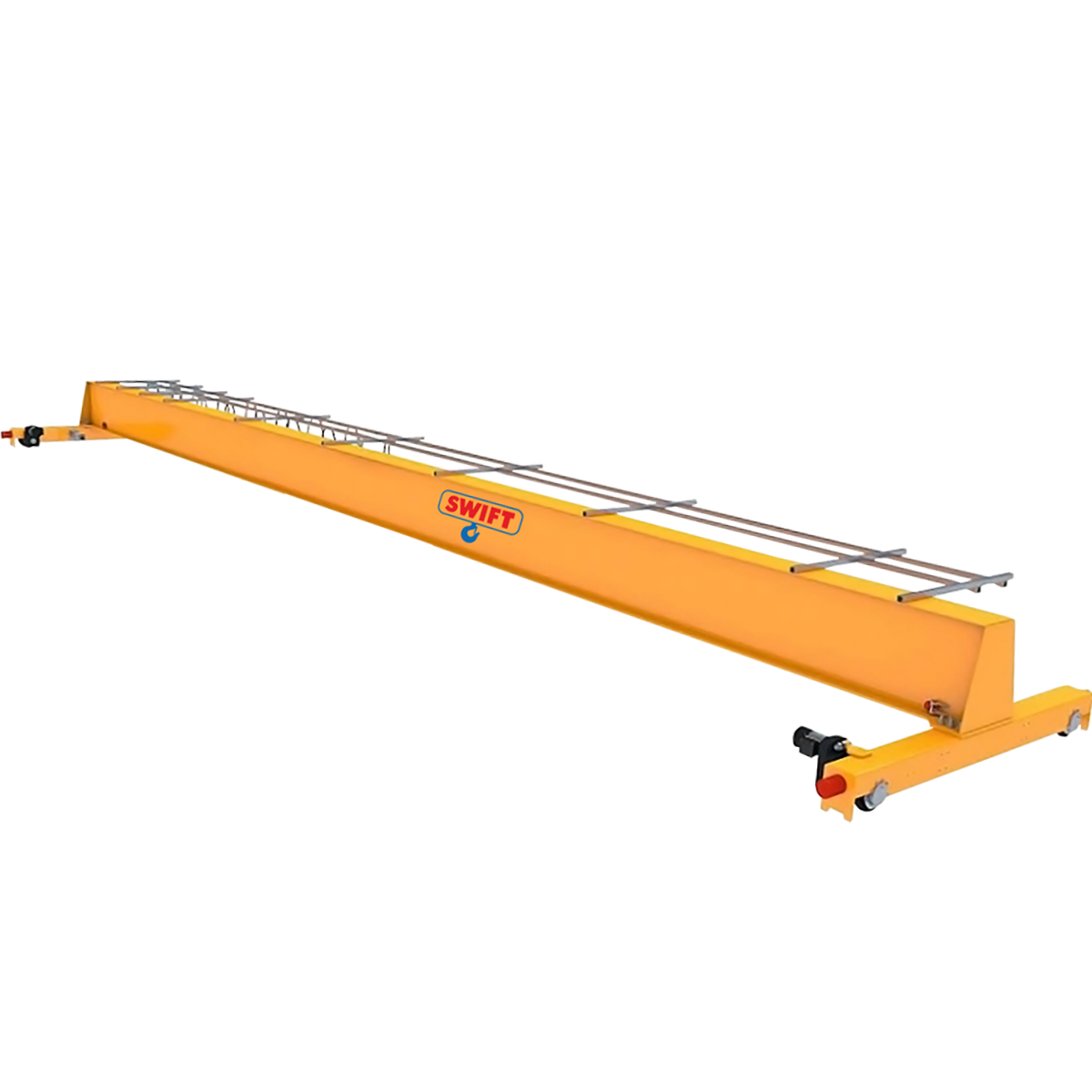

Single Girder E.O.T Crane

At Consolidated SWIFT Industries Limited, we deliver high-performance overhead lifting solutions tailored for streamlined operations in modern industrial facilities. Our Single Girder E.O.T. Cranes are specifically designed to operate on elevated runway beams, making them ideal for workshops, warehouses, and manufacturing units where floor space is at a premium. With safe working loads from 0.5 tons to 35 tons and spans up to 30 meters, these cranes ensure robust lifting capacity while maintaining structural efficiency and reliability.

Features

Benefits

Compact design to minimize hook approaches, optimizing space utilization
Welded box-type or rolled 'I' beam construction enhances overall strength and durability
Durable wire rope guide rings ensure smooth operation and reduce wear on both wire ropes and drums
Compact long and cross-travel drives improve operational efficiency
DC electromagnetic brake for hoisting, with optional AC or DC brakes available for cross and long travel motions
Limit switches included for all movements, with an emergency upper limit switch for hoisting

Increased lifespan of equipment due to reduced wear on ropes and drums
Maximized space efficiency due to the compact design and minimal hook approaches
Enhanced safety through DC electromagnetic brakes, limit switches, and electrical overload protection
Customizable for specific needs, including anti-fall and anti-derailment features
Ideal for demanding industrial applications, offering reliable and efficient material handling

Enquire Now

Features

Compact design to minimize hook approaches, optimizing space utilization
Welded box-type or rolled 'I' beam construction enhances overall strength and durability
Durable wire rope guide rings ensure smooth operation and reduce wear on both wire ropes and drums
Compact long and cross-travel drives improve operational efficiency
DC electromagnetic brake for hoisting, with optional AC or DC brakes available for cross and long travel motions
Limit switches included for all movements, with an emergency upper limit switch for hoisting

dbe

Benefits

Increased lifespan of equipment due to reduced wear on ropes and drums
Maximized space efficiency due to the compact design and minimal hook approaches
Enhanced safety through DC electromagnetic brakes, limit switches, and electrical overload protection
Customizable for specific needs, including anti-fall and anti-derailment features
Ideal for demanding industrial applications, offering reliable and efficient material handling

Enquire Now

Optional Features

Anti-collision systems for multiple cranes working in the same bay

Independent moving pendant controls

Load limiter and load indicator options

Slack wire limit switch for added safety

Hour meter for operational tracking

Radio remote control for flexible operation

Alarm systems and bridge lights for enhanced visibility and safety

Tandem operation of hoists

FAQs

1. What capacity range is available in single girder cranes?

Swift single girder cranes support safe working loads from 0.5 tons to 35 tons.

2. What span can single girder cranes cover?

SWIFT single girder cranes can handle spans up to 30 meters, making them ideal for workshops and warehouses.

3. Where are single girder cranes commonly used?

They are widely used in manufacturing units, warehouses, fabrication shops, and assembly plants.

4. What construction design is used in these cranes?

Swift single girder EOT cranes feature welded box-type girders or rolled I-beam structures for durability and strength.

5. What braking system is used in the crane?

A DC electromagnetic brake system ensures controlled hoisting and safe operation.

6. What safety features are included?

The crane includes limit switches, overload protection, and emergency upper limit switches.

7. Can single girder cranes be customized?

Yes. Options include load limiters, anti-collision systems, radio remote control, and tandem hoisting operations.

8. What advantages do single girder cranes offer?

They provide cost-effective installation, compact design, and efficient material handling.

9. What type of hoists can be used with single girder cranes?

They typically use wire rope hoists or electric chain hoists.
